Speed Controllers Special Environments
Elbow Type/Universal Type/Push-lock Type/Stainless Steel type AS-FG
 | ・Stainless steel type ・Easy to lock push-lock type ・Larger knob ・Improved tube insertion/removal Insertion force: Max. 30% (8 N) reduction Removal force: Max. 20% (5 N) reduction* * Tube removal strength is ensured to be equivalent to the previous model. ・360°swivel piping is possible. (Universal type) |
| Type | Series | Port size in the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type Stainless steel type | AS12□1FG to 42□1FG | M5×0.8 10-32UNF R, NPT, G 1/8 to 1/2 | φ2 to φ16 | φ1/8'' to φ1/2'' |
| Universal type Stainless steel type | AS13□1FG to 43□1FG | M5×0.8 10-32UNF R, NPT, G 1/8 to 1/2 | φ3.2 to φ12 | φ1/8'' to φ1/2'' |
■Reduces labor time!

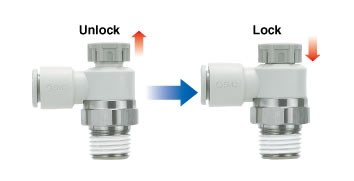

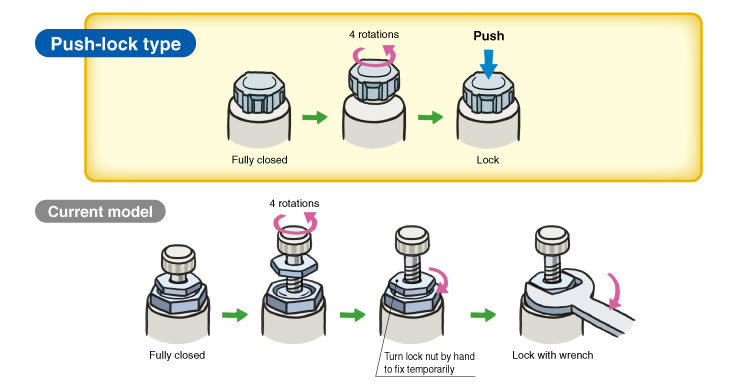

Push-lock type Easy to lock
■Easy tool-less one push-lock

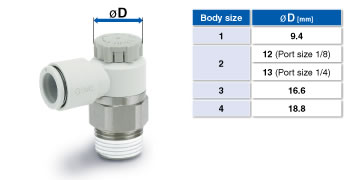

■Larger handle

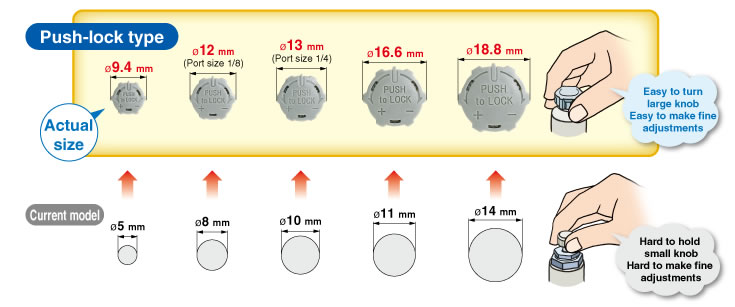

■Easy to turn large knob

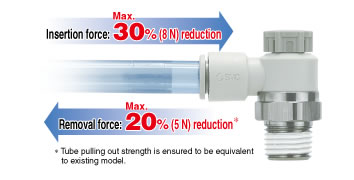

■Improved tube insertion/removal

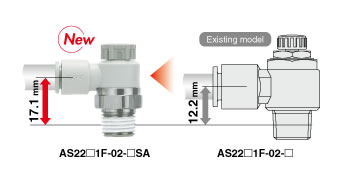

More space beneath the tube.
Easier installation/removal of the tube.

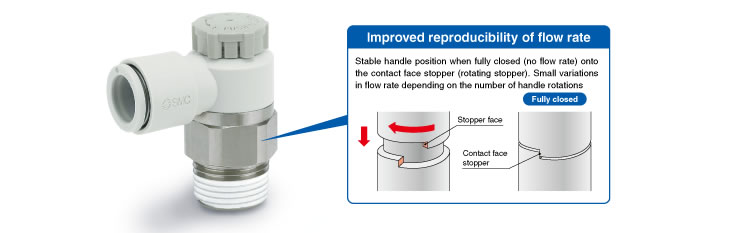

■Flow rate reproducibility

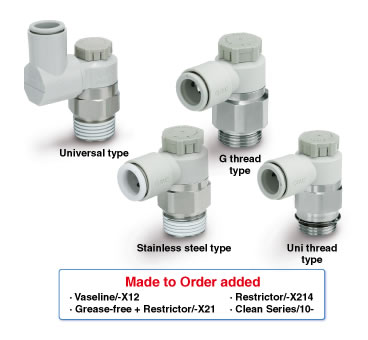

■New type added!

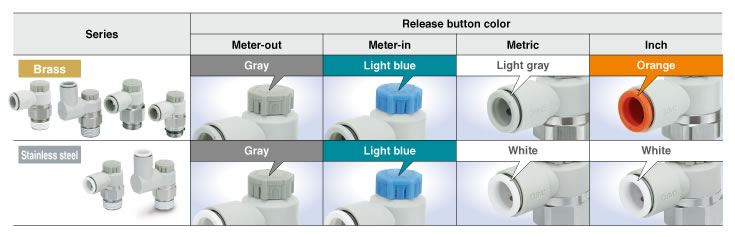

■Easy identification of product type

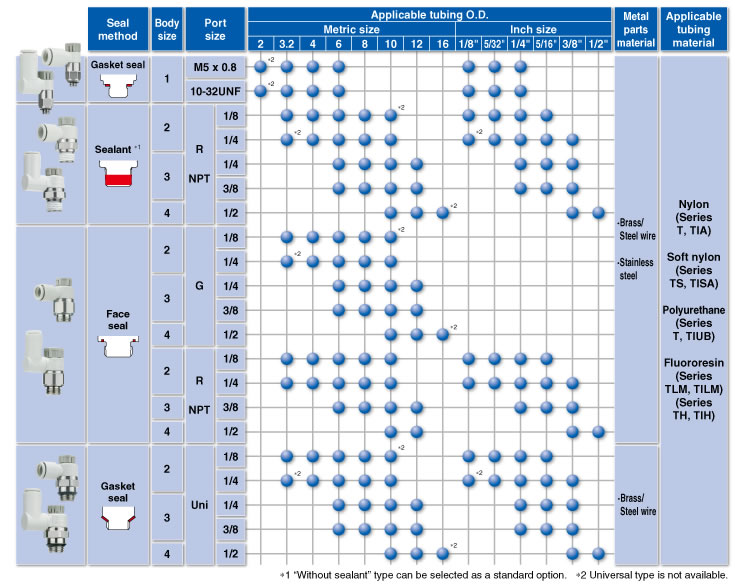

■Series Variations
■Electroless nickel plating type is standardized.
■Stainless steel type is standardized.
■G thread (face seal) is standardized.
Elbow Type/Universal Type/Push-lock Type/Stainless Steel type AS-FG
- Product Code: AS-FG Elbow Type/Universal Type/Push-lock /Stainless Steel
- Availability: In Stock
-
-
Tags: Elbow Type/Universal Type/Push-lock Type/Stainless Steel type AS-FG
